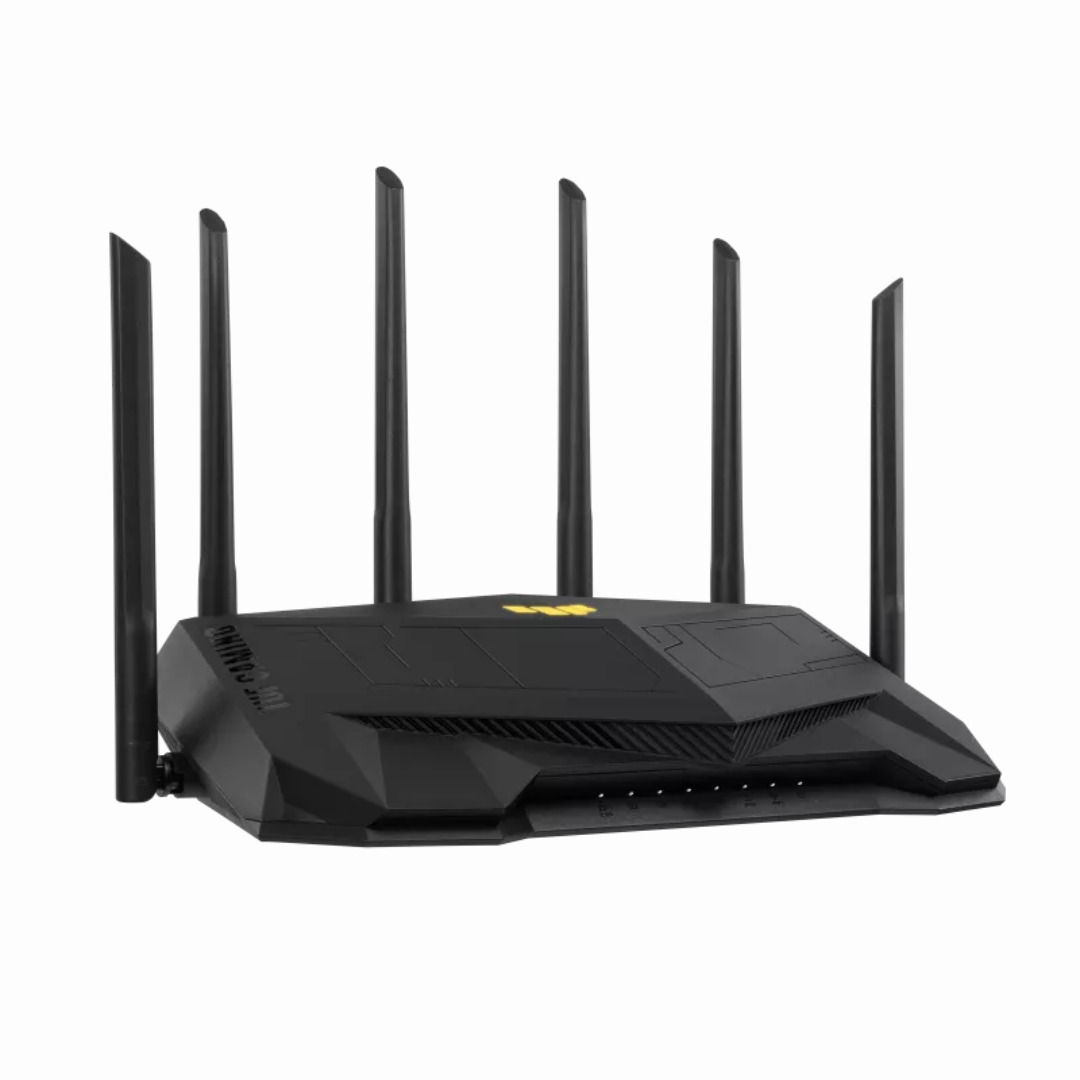

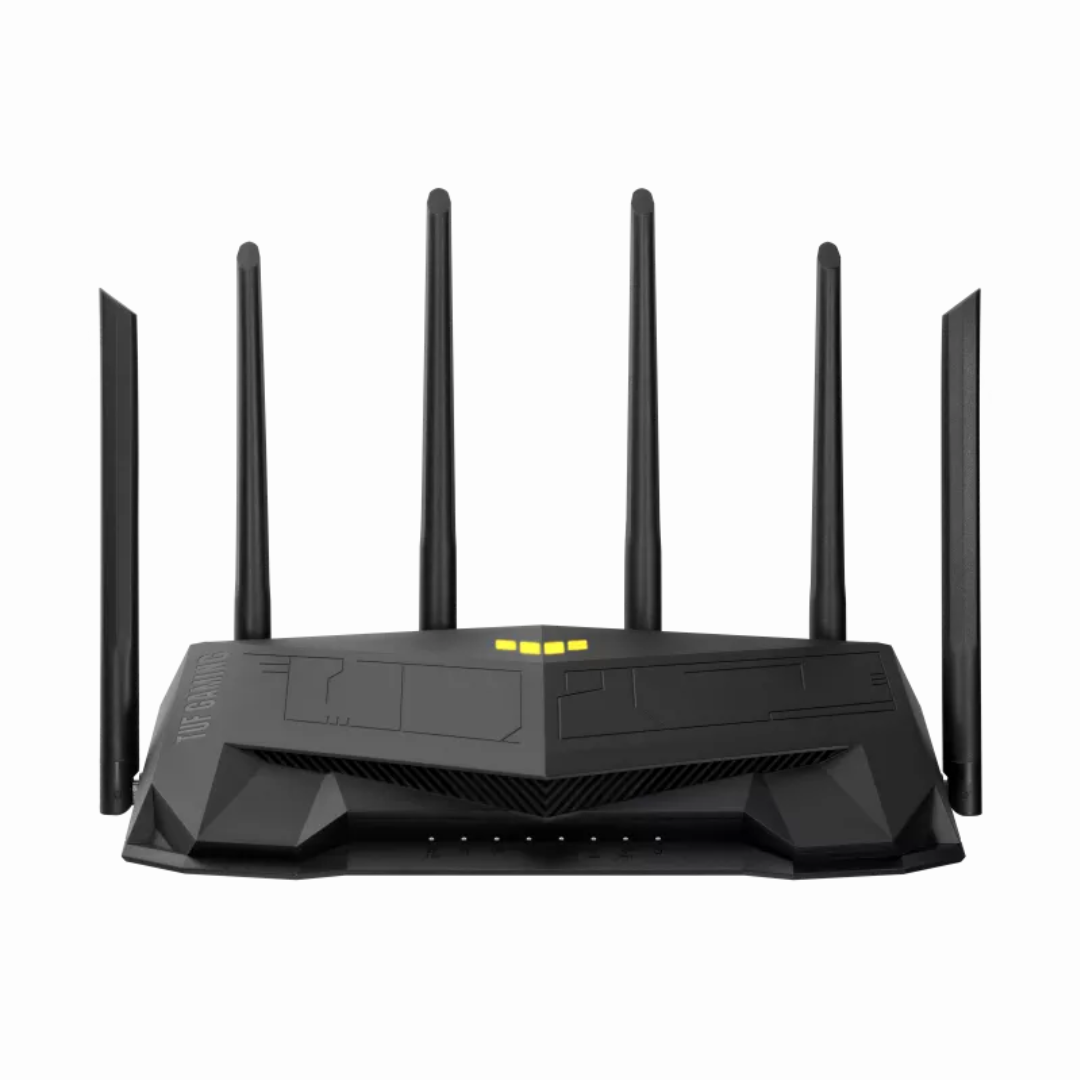

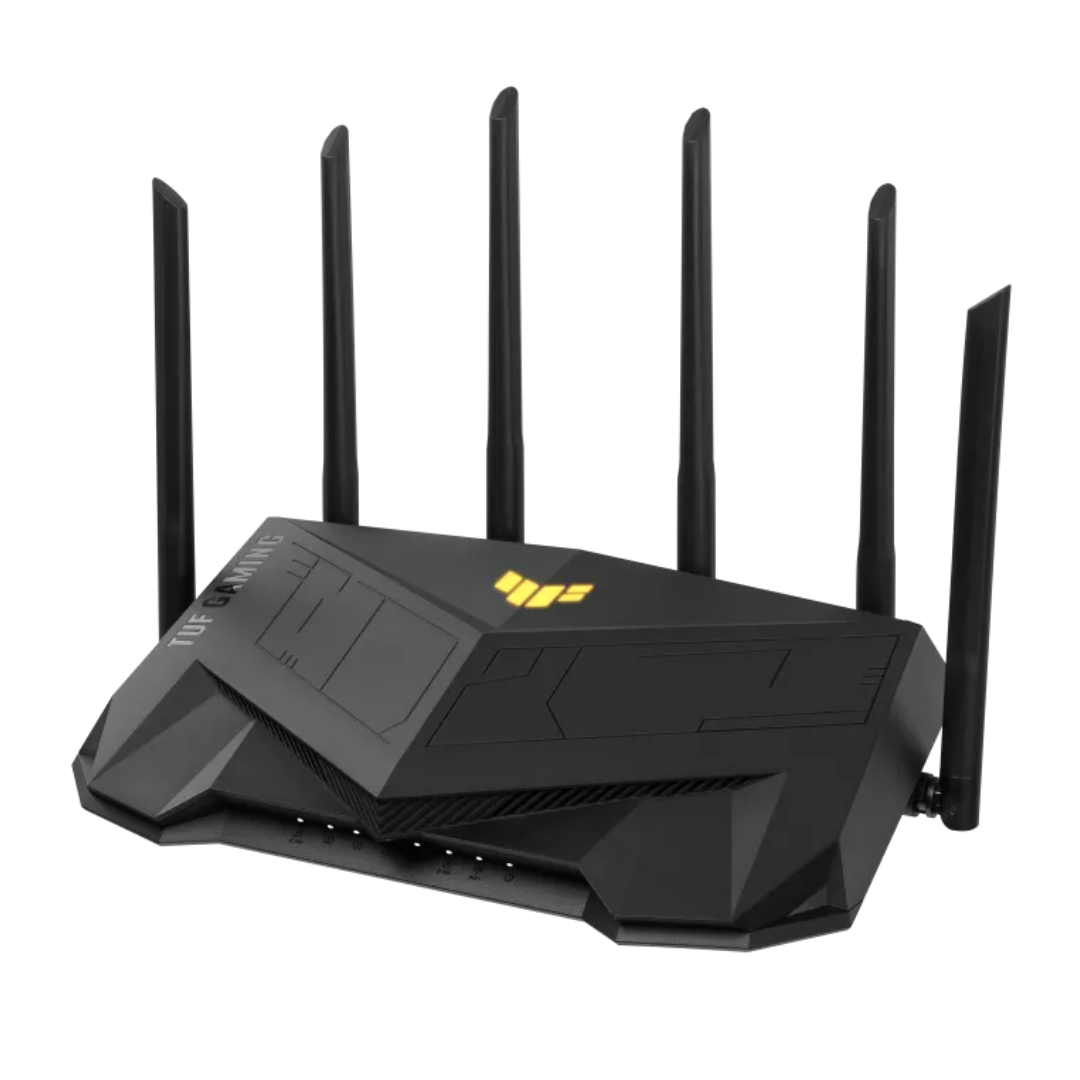

ASUS Tuf Gaming AX6000 Dual Band WiFi 6 Router

TUF Gaming AX6000 Dual Band WiFi 6 Gaming Router with dedicated Gaming Port, Dual 2.5G Port, 3steps port forwarding, AiMesh for mesh WiFi, AiProtection Pro network security and AURA RGB lighting.



Model: TUF Gaming AX6000
Network Standard:

• IEEE 802.11a



• IEEE 802.11b



• IEEE 802.11g



• WiFi 4 (802.11n)



• WiFi 5 (802.11ac)



• WiFi 6 (802.11ax)



• IPv4



IPv6

Product Segment: AX6000 ultimate AX performance : 1148+4804 Mbps
WiFi Data Rate:

• 802.11a : up to 54 Mbps



• 802.11b : up to 11 Mbps



• 802.11g : up to 54 Mbps



• WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps



WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna: External antenna x 6
Transmit / Receive: 2.4GHz 2×2 / 5GHz 4×4
Processor: 2.0 GHz quad-core processor
Memory: 256 MB Flash / 512 MB RAM
Boosts Speed:

• OFDMA (Orthogonal Frequency Division Multiple Access)



• Beamforming: standard-based and universal



• 1024-QAM high data rate



• 20/40/80/160 MHz bandwidth



Operating Frequency: 2.4G Hz / 5 GHz

Operating Mode:

• Wireless router mode



• Access point mode



Media bridge mode

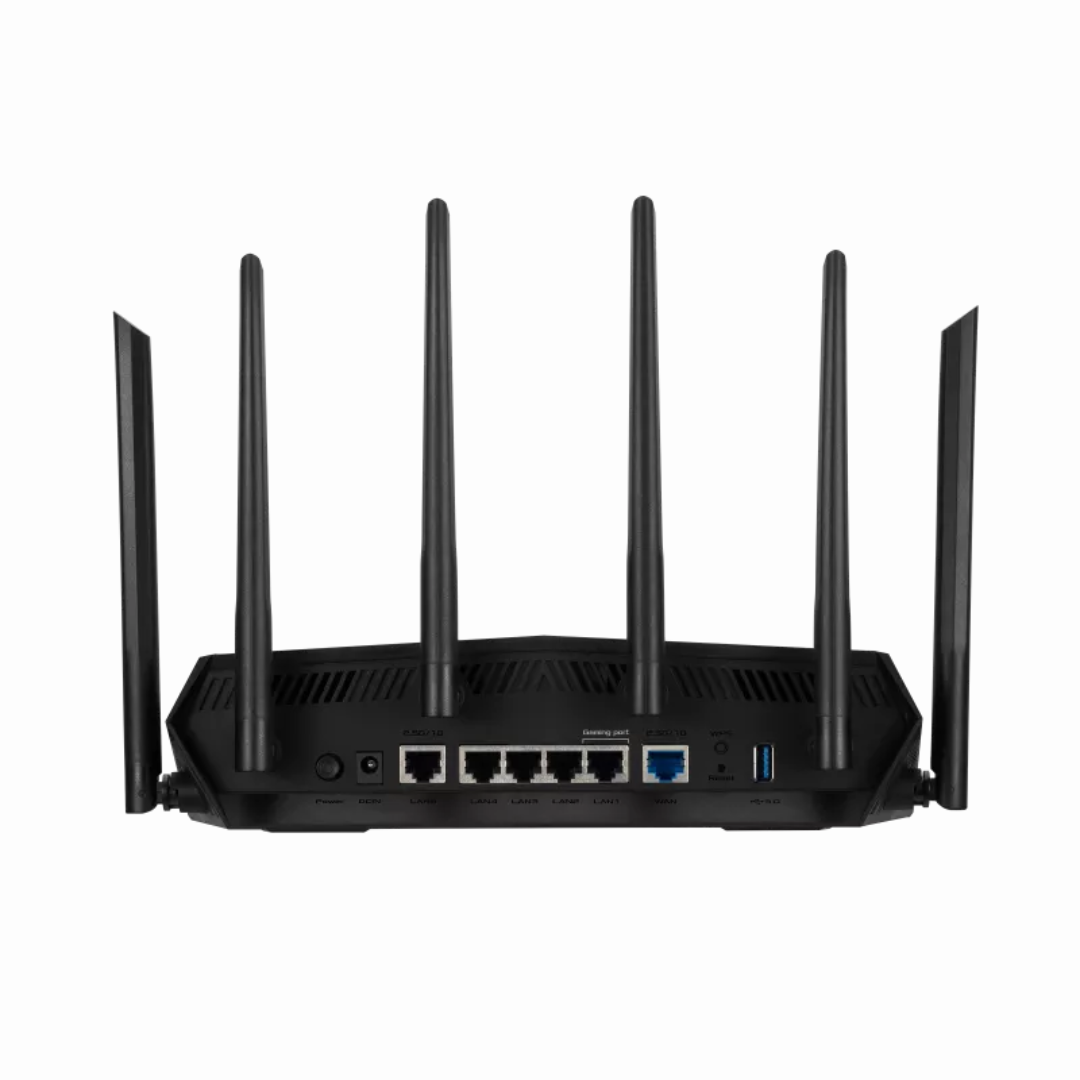

I/O Ports:

• RJ45 for 2.5 Gigabits BaseT for WAN x 1,



• RJ45 for 2.5 Gigabits BaseT for LAN x 1,



• RJ45 for Gigabits BaseT for LAN x 4,



USB 3.2 Gen 1 x 1

Buttons: WPS Button, Reset Button, Power Switch, LED on/off
LED Indicator:

• Power x 1



• WiFi x 1



• 1G LAN x 4



• 2.5G WAN x 1



2.5G LAN x 1

Power Supply:

• AC Input : 100V~240V (50~60Hz)



DC Output : 12 V with max. 2.5 A current

Package Content:

• TUF Gaming AX6000 Dual Band WiFi 6 router



• RJ-45 cable



• Power adapter



• Quick Start Guide



Warranty card

Product Weight (g): 696g
Product Dimensions: 301.02 x 174 x 216 mm
AiMesh:

• • Primary AiMesh Router



• AiMesh Node

Game:

• Game Boost / Acceleration



Mobile Game Mode

Parental Control:

• “Allow you to block access to unwanted websites and apps.”



• Safe Browsing



Customized Internet Schedule

Guest Network:

• “The Guest Network provides Internet connection for guests but restricts access to your local network.”



• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3



Guest Network Connection Time Limit

Security:

• AiProtection



• WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise



• WPS



• Let’s Encrypt



• DNS-over-TLS



• SSH



• Security Scan



• Firewall



• • Maximum Firewall Keyword Filter : 64



• • Maximum Firewall Network Service Filter : 32



• Maximum Firewall URL Filter : 64

AiProtection:

• • Router Security Assessment



• • Malicious Site Blocking



• • Two-Way IPS



• Infected Device Prevention and Blocking

VPN:

• VPN Client L2TP



• VPN Client Open VPN



• VPN Client PPTP



• VPN Server IPSec



• VPN Server Open VPN



• VPN Server PPTP



• VPN Server WireGuard



VPN Fusion

Traffic Control:

• Adaptive QoS



• • Bandwidth Monitor



• • Bandwidth Limiter



• — Maximum Bandwidth Limiter Rule : 32



• Traditional QoS



• — Maximum Traditional QoS Rule : 32



• Traffic Monitor



• • Real-time Traffic Monitor



• • Wired Traffic Monitor



• • Wireless Traffic Monitor



• Traffic Analyzer



• • Traffic Analysis Period : Daily, Weekly, Monthly



• Website History

WAN:

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP



• Dual WAN



• WAN Aggregation



• 3G / 4G LTE dongle



• Port forwarding



• • Maximum Port Forwarding Rule : 64



• Port triggering



• • Maximum Port Triggering Rule : 32



• DMZ



• DDNS



NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

LAN:

• DHCP Server



• IGMP Snooping



• IPTV



• LAN Link Aggregation



• Manually Assign IP Address



• • Maximum Manually Assign IP Address Rule : 64



Wake on LAN (WOL)

Wireless:

• UTF-8 SSID



• WiFi MAC Address Filter



• • Maximum MAC Filters : 64



• Wireless Scheduler



• Airtime Fairness



• Universal Beamforming



Explicit Beamforming

USB application:

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4



• Safely Remove Disk



• AiCloud



• Download Master



• AiDisk



• Media Server



• Time Machine



• Samba Server



• FTP Server



Shared Folder Privileges

Administration:

• Configuration Backup and Restore



• Diagnosis tools



• Feedback System



• System Log



• New Device Connect Notification



• Login Captcha



• Connection Diagnosis



Auto Firmware Update
